SPRAY PAINTING SYSTEM
We RSK Engineers, is one of the leading organisation in the field of surface finishing systems. Our primary objective is to serve with high quality standards considering operator safety, with environment care at required production rate with minimum maintenance. Our complete ranges of booths are available in a wide variety of Specification and configurations as HI-TECH series systems to meet every need and application. Our surface finishing system types are manual, semi automatic, Automatic and Robotic with all necessary safety features.
Spray Painting System1
We offer wide range of optional accessories required for our system such as, Curing chamber, Water treatment plant, Surface treatment system, Automated fire extinguisher, Material handling system, Air compressor, Air drier, Special Imported guns, Air hose, Paint Pressure feed system and other accessories etc on request.
Spray Painting System2

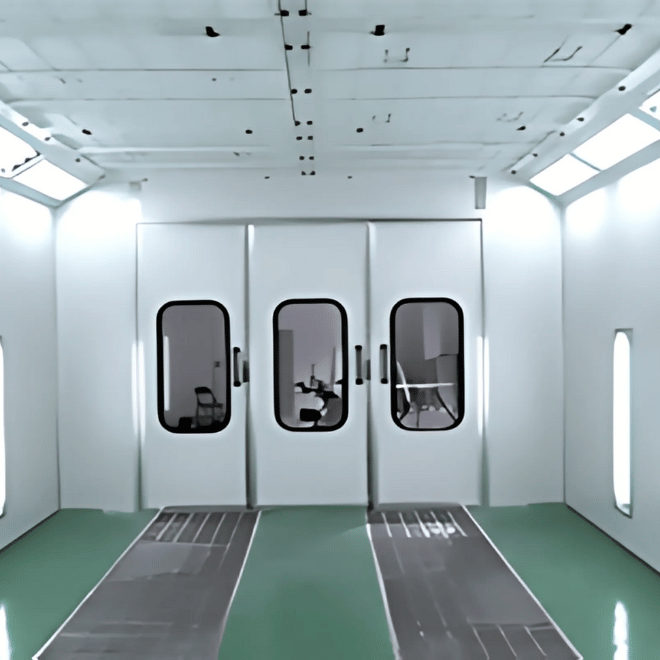

Our Hi-Tech series Spray Painting Systems are designed for optimum performance with considering type of paint, production rate, level of automation, operator comfort etc. Our painting booth is rigidly constructed using non corrosive GI panel/Stainless steel/Powered coated panels, based on customer request. Both dismantlable and welded types are available.
We also manufacture fully automated or semi automated painting plants using conveyors and material handling system. Some paints require elevated temperature curing, We provide specially designed curing chamber made up of insulated GI panels. Oil fired burners, electrical heating element, IR heating elements etc., are used as heat source for the system.
PLC, Variable frequency drive, digital temperature controller are used based on customers requirement. Flame proof control panels are provided for special applications.
Salient Features & Benefits
| * | Improved working environmental condition. |
| * | Centralised control panel. |
| * | Rust free enclosure using galvanized steel construction. |
| * | Maximum lighting to ensure defect free painting |
| * | All blower and fans are dynamically balanced to noise, vibration and trouble free operation. |
| * | Standard filter size insures that replacement can be obtained easily. |
| * | Safety interlocks. |
| * | Efficient collection of paint. |
TYPES OF PAINTING SYSTEM
Based on Collection
| DRY PAINT BOOTH | Paint collection using filters (without water) |
| WET PAINT BOOTH | Water is used to collect paint |
Based on Draught
| SIDE DRAUGHT | Air flow is parallel to floor |
| DOWN DRAUGHT | Air flow down to floor |
| SIDE/DOWN DRAUGHT | Combination of side and down draught |
Based on Enclosure
| OPEN FACED | One side of booth is open |
| FULLY ENCLOSED | All side are enclosed |
Based on Automation
| MANUAL | Fully manual operated |
| SEMI AUTOMATIC | Partially automated |
| FULLY AUTOMATIC | Fully automated |
| ROBOTIC | Using Robotic arm |
